Description

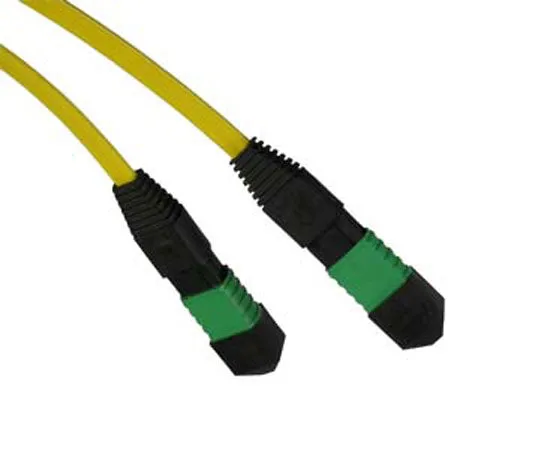

Plenum MTP®/MPO Fiber Optic Cables, Single-Mode 9/125 OS2, 12 Strand, Female to Female

These high speed Single-Mode 9/125um OS2 Polarity Type C Fiber Cables are terminated with MTP® fiber optic connectors on both ends (MTP-MTP). The MTP® ("Multifiber Termination Push-on") connector is a multifiber connector developed by USConec that contains up to twelve optical fibers within a single ferrule.

Each one of the MTP® cables contain 12 fibers channels in a connector smaller than most duplex connections in use today. MTP® fiber cables are designed as a high-performance version of the MPO style cable and will interconnect with MPO connectors.

Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with   and

Available in three polarity types:

• Type-A (Straight Through)
• Type-B (Cross, Flipped)
• Type-C (Cross Pair, Rollover)

Features

• High speed plenum Single-Mode 9/125um OS2 fiber cables
• Terminated with MTP® fiber optic connectors on both ends (MTP-MTP)
• APC Polish Type
• Available in multiple lengths from 1 Meter to 50 Meters
• Method C Polarity (Cross Pair, Rollover)
