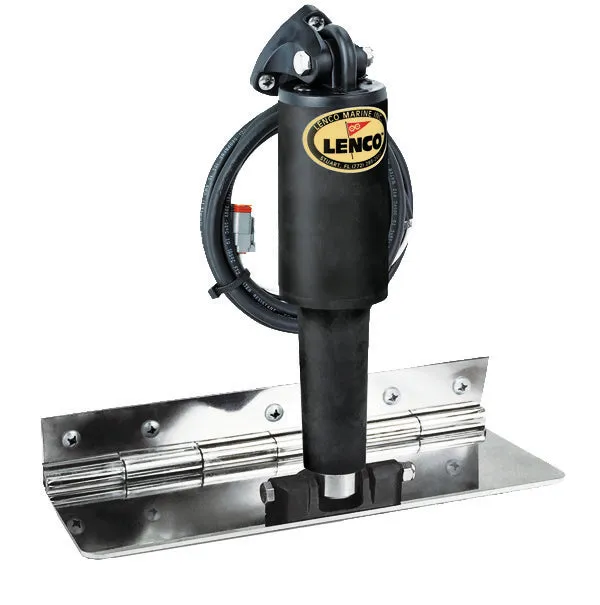

Lenco 4"x12" Limited Space Trim Tab Kit 12v Electro Polished

Lenco 4" x 12" Limited Space Trim Tabs Electro-Polish Finish

Engineered to fit behind ladders. This unique design gives you all the benefits of a standard tab in an ultra compact design. These kits are updated with 11-gauge stainless steel blades. Boat lengths 14’ (4.3 m) to 25’ (7.6 m). Blades are constructed of a stronger 11-gauge laser cut 304 stainless steel and 3/8"(9.5 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.

L" X W"
4" X 12"

Min. Transom Height
14.5" (36.8 cm)

Hinge Height
2" (5.1 cm)

What's in the Box:

• (2) NEW 11-gauge stainless steel blades with option of standard finish or Electro-Polish finish


• (2) 15054-001 Standard actuators with 6' (1.8 m) lead and Deutsch connectors


• (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length


• (2) 15085-001 upper mounting brackets with gland seal


• Lower mounting brackets included


• Lenco owner's/installation manual


• Stainless steel mounting hardware
